Pressure measurement plates

paroGraph T and WINPOD WifI for mobile use

Always ready to go

The paroGraph T and the WinPod Wifi are ideal for quick diagnosis on site with the user and for mobile use in clinics, medical practices, sports venues and branches, or for demonstrations and promotions.


Precision is standard

The paroGraph pressure measurement plates provide users with exact data and feature numerous functions for practical use:

  • Static and dynamic pressure measurement
  • Representation of the gait line/force path

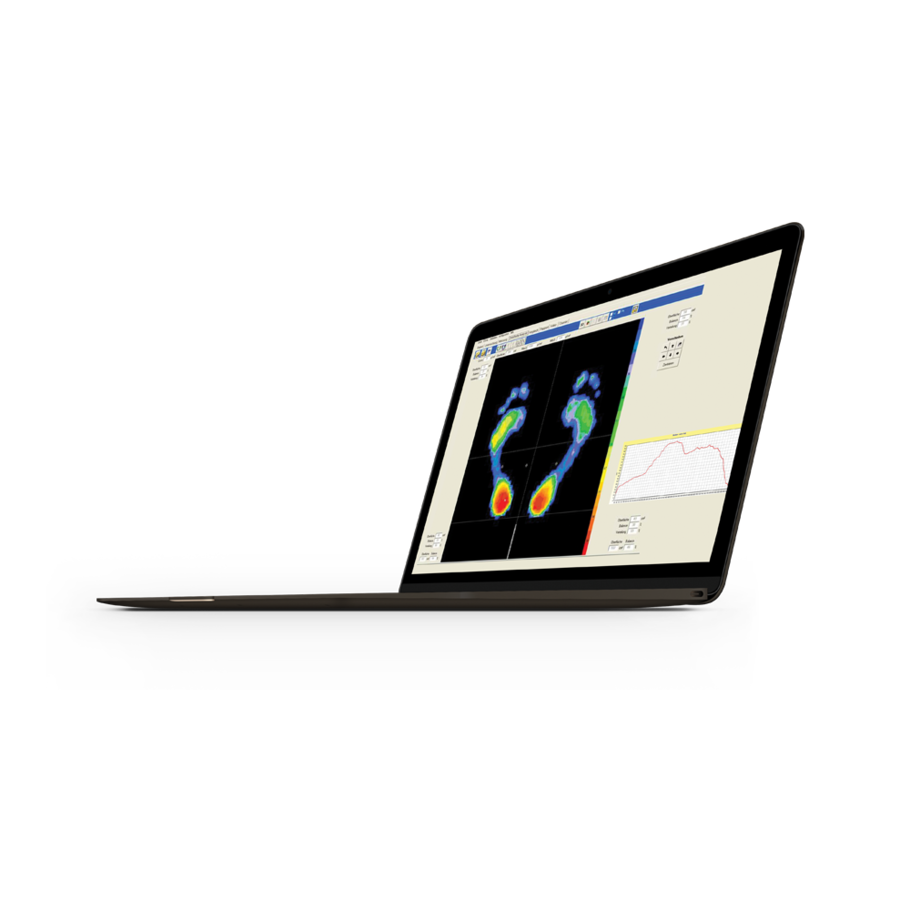

  • Colour representation of pressure loads
  • Straightforward generation of reports and printouts
  • Two versions to meet individual requirements

They like to show what they can do

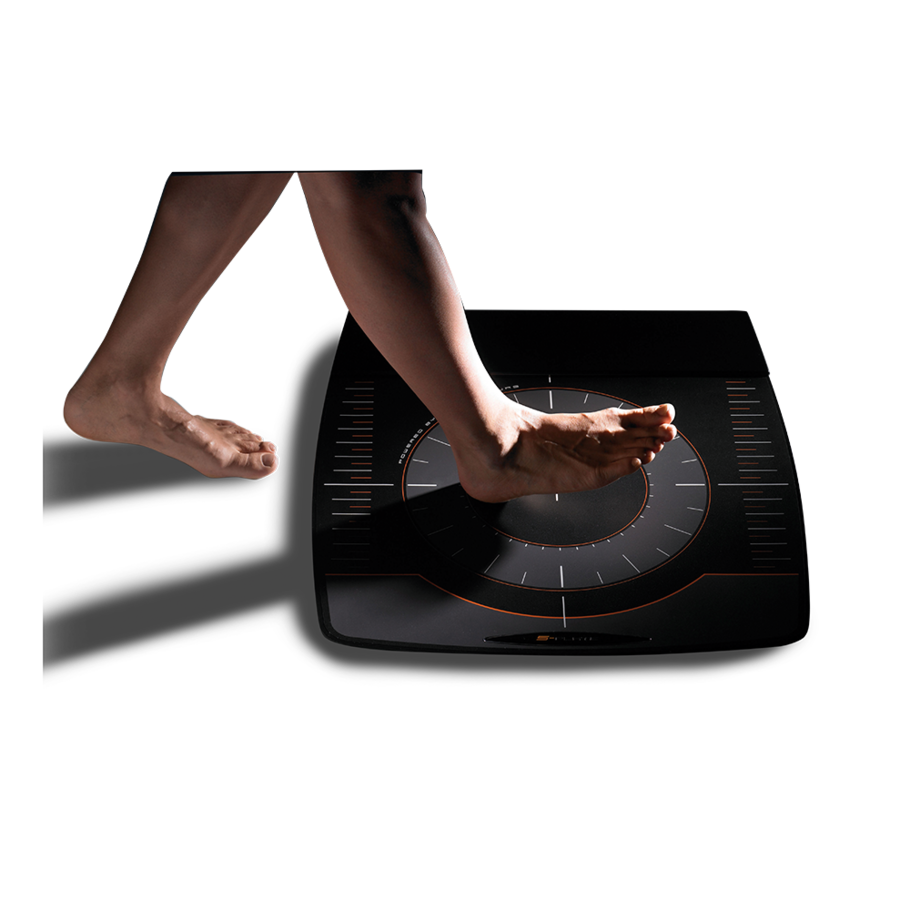

paroGraph T

The cost-effective, entry-level pressure measurement plate.

WINPOD WIFI

The pressure measurement plate for ultimate precision.


Solution details

Technical data: paroGraph T

  • Measurement plate, overall:
    612 x 565 x 8/22 mm
  • Active measurement surface:
    400 x 400 mm
  • Weight: 3,8 kg
  • Number of sensors: 40 x 40 = 1,600
  • Size of the sensors: 1.0 x 1.0 cm = 1.00 cm²
  • Pressure measurement range:
    70 g/cm² to 3.5 kg/cm²
  • Max. measurement frequency: 100 images per second
  • High capacity Rechargeable Battery
  • Interface PC/Plate: Wifi or USB

Technical data: Winpod WIFI

  • Measurement plate, overall:
    610 x 530 x 25 mm
  • Active measurement surface:
    400 x 400 mm
  • Weight: 6.8 kg
  • Number of sensors: 48 x 48 = 2,304
  • Size of the sensors: 0.8 x 0.8 cm = 0.64 cm²
  • Pressure measurement range:
    70 g/cm² to 3.5 kg/cm²
  • Max. measurement frequency:
    200 images per second
  • High capacity Rechargeable Battery
  • Interface PC/Plate: Wifi or USB

Scope of delivery

Components:

  • Pressure measurement plate
  • Application software
  • Own database
  • USB connection cable
  • User manual

Optional:

  • Aluminium case

Always ready for the next step

At trade fair presentations or mass screenings, or for quick diagnosis: the paroGraph pressure measurement plates meet the highest requirements in any situation, thereby, providing the basis for an optimum foot fitting with insoles.
