3D foot scanner
paroScan 3Dh for flexible application
Saves time and reduces costs

The paroScan 3Dh is a mobile scanner that uses a stereo 3D camera to scan foot impression foams. The user can either use the scanner as a stationary unit with a vertical stand or as a mobile system with a case. An innovative product from paromed. And a time and cost-saving alternative to conventional methods.


An investment that pays off

The speed and flexibility of the paroScan 3Dh are convincing:

  • Fast digitalisation of foam impressions
  • 3D representation down to the details
  • Stationary and mobile use possible
  • Straightforward operation without mains cable (USB connection)
  • Colour-coded 1:1 print

Equipped for any situation

For mobile use on site

  • Dimensions including case: 715 x 454 x 352 mm
  • Weight, complete: 4,850 g

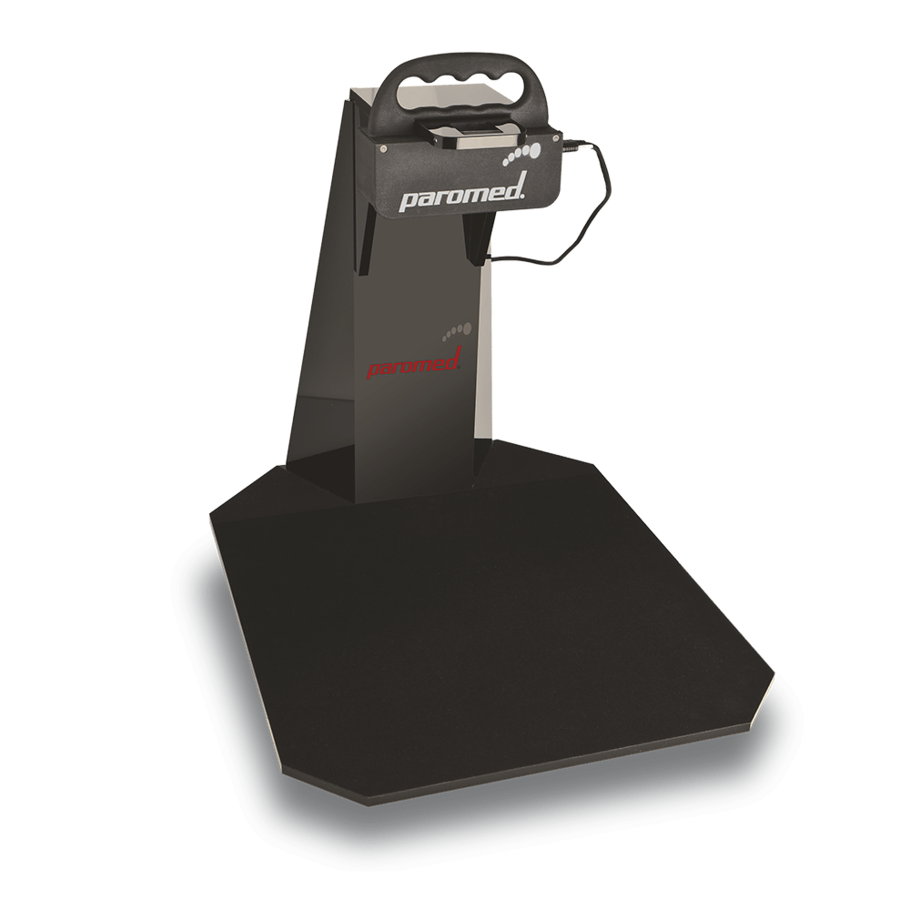

For stationary application
with vertical stand

  • Dimensions: 500 x 400 x 470 mm
  • Weight, complete: 4,165 g

Solution details
Technical data
  • Scanner: 55 x 155 x 60 mm + 60 mm handle
  • Weight: 600 g
  • Sensor: 752 x 480 px, 1/3 inch, wide VGA, Global Shutter
  • Optimum measuring range: 380 x 230 x 60 mm
  • Optimum camera distance: approximately 300 mm
  • Real-time recordings: up to 30 images per second
  • Connection: USB 2.0 with thread
Scope of delivery
  • 3D foot impression foam scanner with
  • mounting module and USB connecting cable

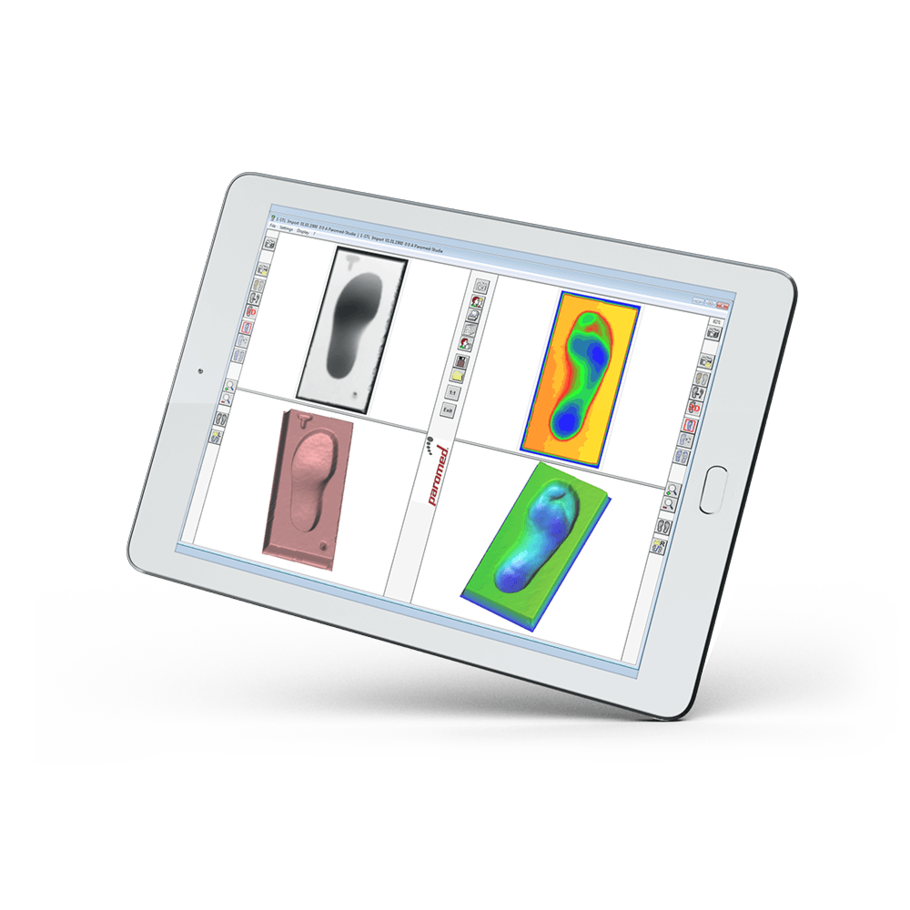

  • paroScan software
  • User manual

Optional:

  • Multifunction case, Netbook tablet, vertical stand for stationary use
Always ready for the next step

With its functionality, the paroScan 3Dh is ideal to support all users looking for a mobile and stationary scanning unit in one – for centrally digitalising foot impression foams.
